MX880 digital wireless

BASIC INFO

MX880 Overview

With high flexibility and reliability, our UHF wireless conference system is an ideal choice for mobile conference systems.

It offers simple operation, compact structures. The wireless conference system can be perfectly integrated into any meeting rooms,

without additional wiring. It’s the best wireless conference solutions for small-scale conferences.Wireless meeting system receiver unit ,

wireless chairman microphone , wireless delegate microphone , battery charger , etc.

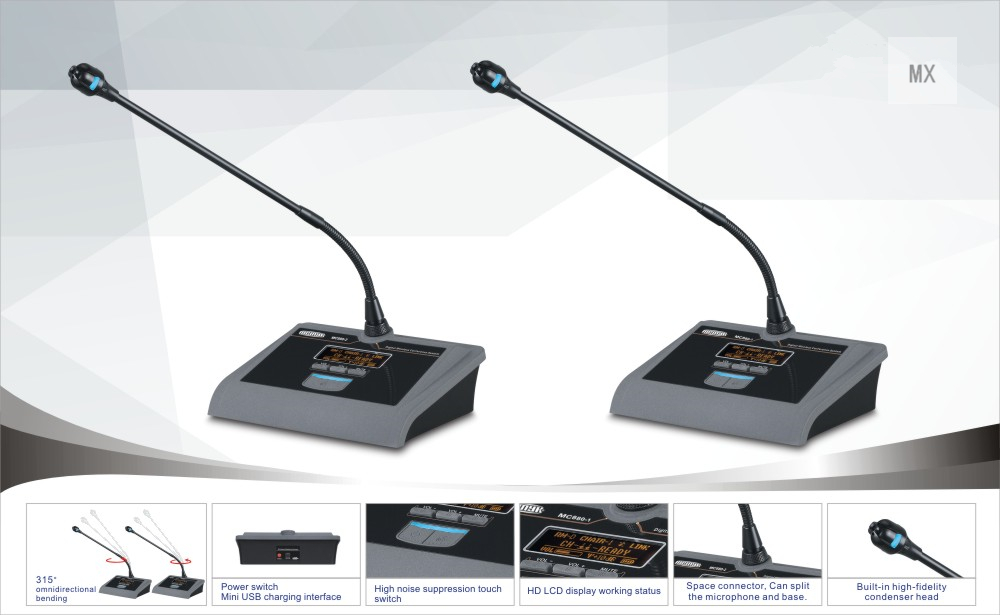

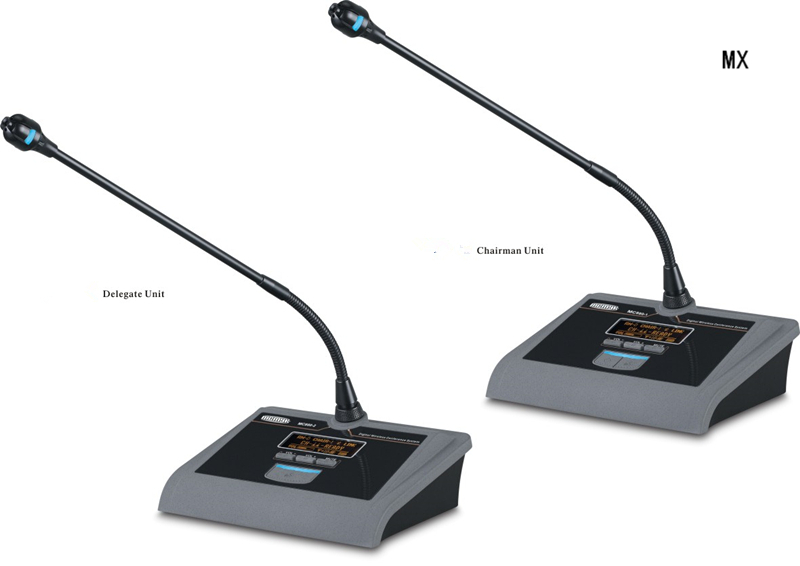

MX880-1 Chairman Unit / MC880-2 Delegate Unit:

The microphone unit has discussion and auto-tracking functions.

It using the flocking to process. It has built-in antena and

rechargeable lithium battery for each unit and equip MINI USB

charger. The annular blue indicator lamp can show the working

state of the microphone. The chairman unit can set the system

working model: FIFO,LIMIT And FREE/CHAIRMAN.

The unit has built-in high fidelty of capacitor sound head ,its sound quality is clear and low noise.

The chairman unit can turn down the delegate unit for anytime by priority button.

Its appearance is design patent.

Technical parameters

Power：	DC 3.7V -- 5V
Power consumption：	Standby state≦360mW, Working state≦630mW
Working temperature：	-10℃ -- 40℃
Length of gooseneck：	380mm
Communication model：	UHF
Channels：	5 Channels
Frequency range：	500MHz --- 950MHz
Modulation model：	FM
Maximum modulation：	60K
Radiation power：	≦+9dBm
requency deviation：	<0.002
Reference speaker distance：	10cm--30cm
Size（W×H×D）：	180mm×48mm×119mm
N.W：	0.8 kg

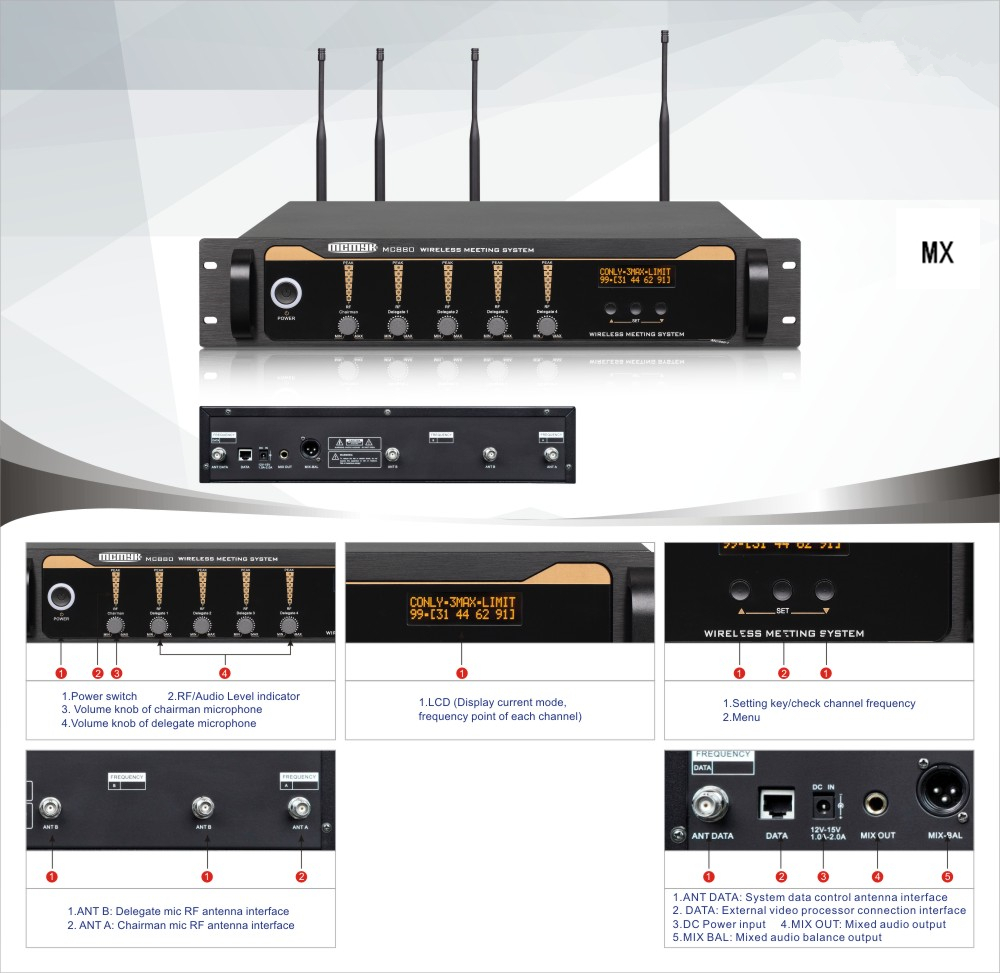

MX880 Main unit System features

Our MC880 series of features simple operation and high flexibility.This system can be

connected to multiple devices. For this wireless conference system, there is no need to

connect the conference units.This system can be quickly installed without trouble some

arrangment. There are 255 unit of microphones in one system,among which 5 people can

be speak at the same time. The digital wireless conference system supports the rotation,

limit and chariman priority model. The system working state can be show on the main unit

of LCD. The conference system has auto-tracking function for connect the video processor.

Technical parameters

Audio channel	Items	Parameter
	Transmission method	UHF Wireless (one way)
	Audio channel	5 (1 chairman,4 delegate)
	Carrier frequency band	500MHz~950MHz
	Modulation method	FM
	Receiving sensitivity	-100dBM
	Audio gain	≤20
	Frequency response	50Hz-15KHz
	S/N Ratio	＞85dB
	T.H.D.	＜0.8%
Data control channel	Transmission method	Wireless (two-way)
	Data channel	16
	Frequency Range	422.4MHz ~ 438.4MHz
	Modulation method	FSK
	Receiving sensitivity	-100dBM
	Transmission consumption	≤6dBm
	Communication rate	100KBPS
	Frequency deviation	＜0.002
System	Power supply	DC12~15V ≤1A
	Signal covering range	Radius 60 meters
	Consumption Rating	7W
	Operating temperature range	-10-40 degree
	Dimensions	485×355×85mm
	N.W	7kg
