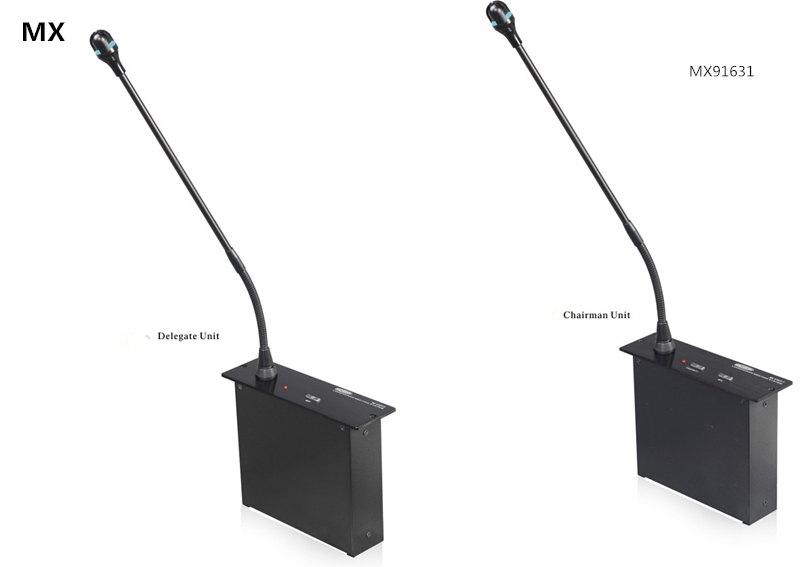

MX91631-1 Chairman Unit / MX91631-2 Delegate Unit:
MCU control circuit, digital management, automatic video tracking / Discussion feature.
Innovative designs, decent, has been the national utility model and design patents.
Multiple operating modes: FIFO / chairman priority / Limit the number / full open mode.
Built-in high-fidelity capacitive sound head, so that the sound reproduction is good, high definition, low noise.
Efficient howling suppression, super pickup effect.
Chairman unit off at any time without any restriction on behalf of unit, which fully demonstrates precedence.

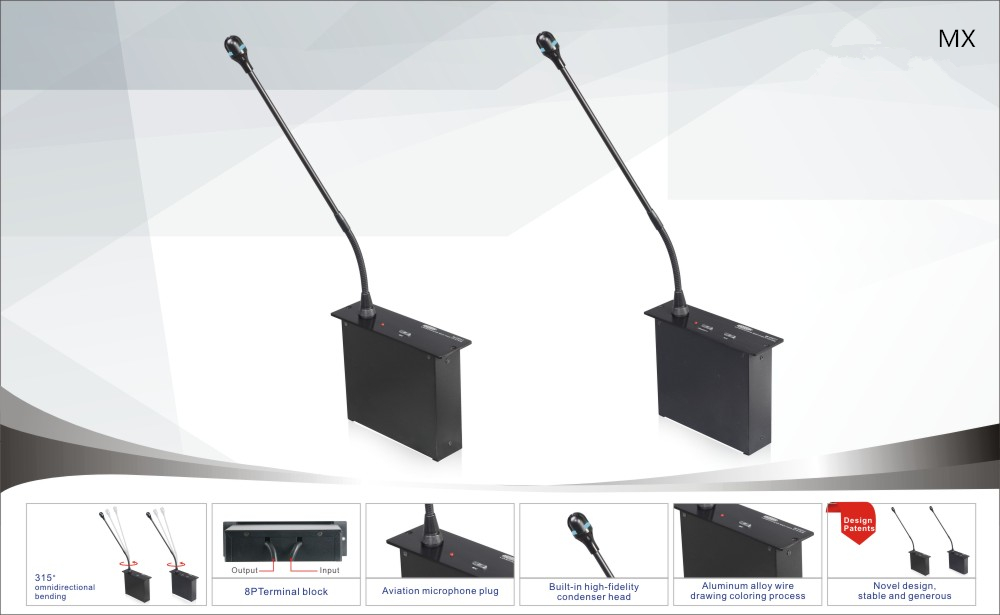

Aviation microphone plug, 315 degree omni-directional bending copper hose.
Microphone is turned on, the microphone indicator lights red.
|Frequency response：||60 Hz -14 KHz|
|Sensitivity：||-45±2 dB @1KHz|
|Input voltage：||DC 24V(Central Processor Powered by)|
|The minimum output impedance：||1KΩ|
|Signal to noise ratio：||68dB(A)|
|Output Socket：||8P terminal block|
|Cables：||2.1m 8P shielded wire|
