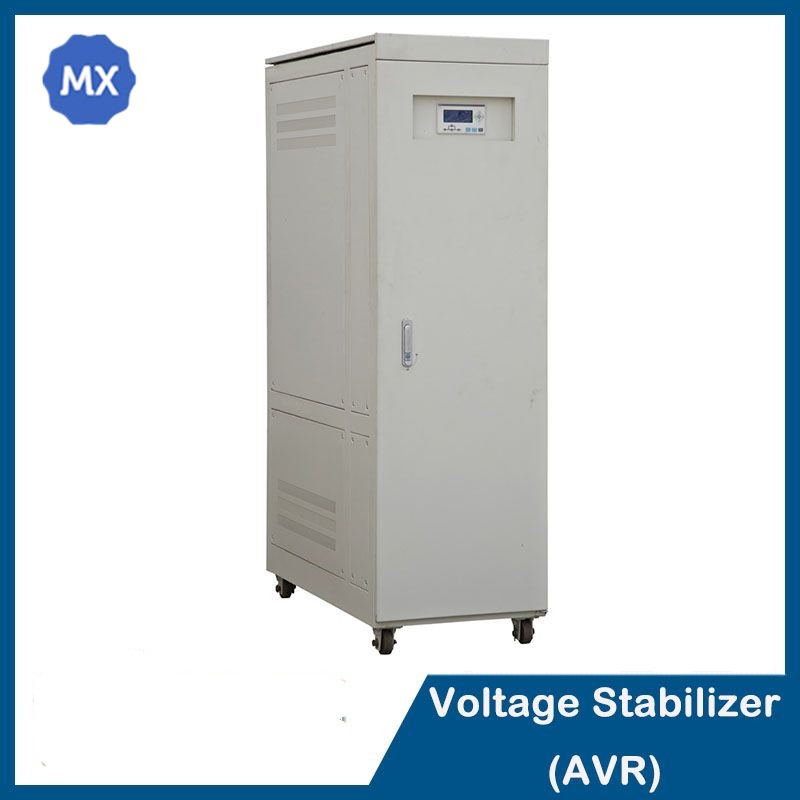

SERVO MOTOR AC POWER VOLTAGE REGULATOR

BASIC INFO

Overview

In today’s world, the cost of electrical power and its quality have become  major operating concerns. The continuing increase in the cost of electrical  power has heightened interest in energy savings, and poor power quality  has been identified as a cause of expensive malfunctions and shutdowns in  new high technology equipment.

Voltage regulation problems account for more than 90% of the power quality  problems seen at most sites. The Voltage Stabilizers provide protection  against mains power sags, surges and brownouts. It is ideal for geographical  regions that are subject to inconsistencies in the mains supply, such as Africa,  Asia and certain parts of Europe.


Each stabilizer has a wide  voltage tolerance, and has been designed to  provide the ultimate reliability in hostile environments, where the quality of  the mains supply cannot be guaranteed.


Features

1.
Extremely wide voltage regulation range
2.
Maintenance free roller type carbon brush
3.
Individual regulation with unique small dimension
4. Maximum capacity up to
5000KVA

5. High Mean time Between Failure(MTBF)
6. Reliable and quiet servo motors
7. Wheels mounted for easy installation
8. Start up delay to prevent over current inrush
9. Isolation transformer on request
10.Indoor or outdoor version on request


Applications:

BROADCAST: Regulation for broadcast transmitter sites and studios.

COMMERCIAL: High- rise building, elevator control, large A/C chillers, lighting, and other sensitive critical  systems.

INDUSTRIAL: Industrial automation, process control, CNC, factory robotics, heavy  load machinery.

MEDICAL: X- ray, CT scanner, MRI system, Radiation therapy machine, other medical imaging  equipments.

TELECOM: Mobile base stations, exchanges stations, control centers and  transmission relay stations .




Technical Specifications:

Input Voltage

Single phase 220V±20%, three phase: 380V±20%

The other  voltage range and rated voltage can be custom designed.

Output Voltage

Single phase 220V±1-5%, three phase: 380V±1-5%

Supply Frequency

50/60Hz

Insulation Resistance

≥2MΩ

Voltage Regulation Mode

Independent phase regulation for three phase

Waveform Distortion

nil

Insulation Class

H class

Method of Voltage Regulation

Regulation transformer with servomotor

Insulated Strength

Single phase: 2000V/1min without puncture

Three phase: 2500V/1 min without puncture

Efficiency

>97% on full load

Overload Rating

Withstand 200% overload in short time

Protection class

IP20(indoor), outdoor type on request

Electrical safety

CE equivalent

Operational Temperature

-20 °C to +45 °C

Functions

Power-on style, Malfunction protection, Short-circuit protection, Lack of phase protection, Over voltage shutdown,
Under voltage shutdown, Safe start


Models&Demensions:

Model
