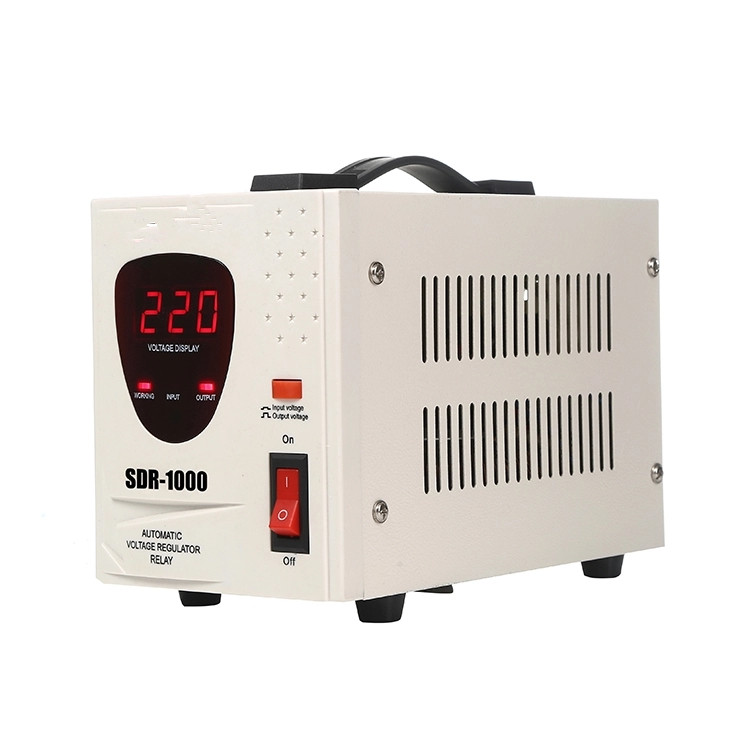

Relay voltage stabilizer

BASIC INFO

Model	SDR-500	SDR-1000	SDR-1500	SDR-2000	SDR-3000	SDR-5000	SDR-8000	SDR-10000	SDR-12000
Nominal Power	500VA	1000VA	1500VA	2000VA	3000VA	5000VA	8000VA	10000VA	12000VA
Power Factor	0.6-1.0
Input
Operating Voltage Range	A:70~285V,B:90~285V,C:125~285V
Regulation Voltage Range	A:80~260V,B:100~260V,C:140~260V
Frequency	50HZ
Connection Type	0.5~3KVA(Power cord with plug), 5~12KVA(Input terminal block)
Output
Operating Voltage	180~255V
High Cut Voltage	255V
Low Cut Voltage	180V
Safety Cycle	3?Seconds / 180 Seconds (Optional)
Frequency	50HZ
Connection Type	0.5-3KVA(Output socket), ?5~12KVA(Output terminal block)
Regulation
Regulation %	8%
Number of Taps	7,6,5
Transformer Type	Toroidal auto transformer
Regulation Type	Relay type
Indicators
LED display	Input voltage ,Output voltage ,Delay time
Protection
Over Temperature	Auto Shutdown at 120 ℃
Short Circuit	Auto Shutdown
Overload	Auto Shutdown
Over / Under Voltage	Auto Shutdown
