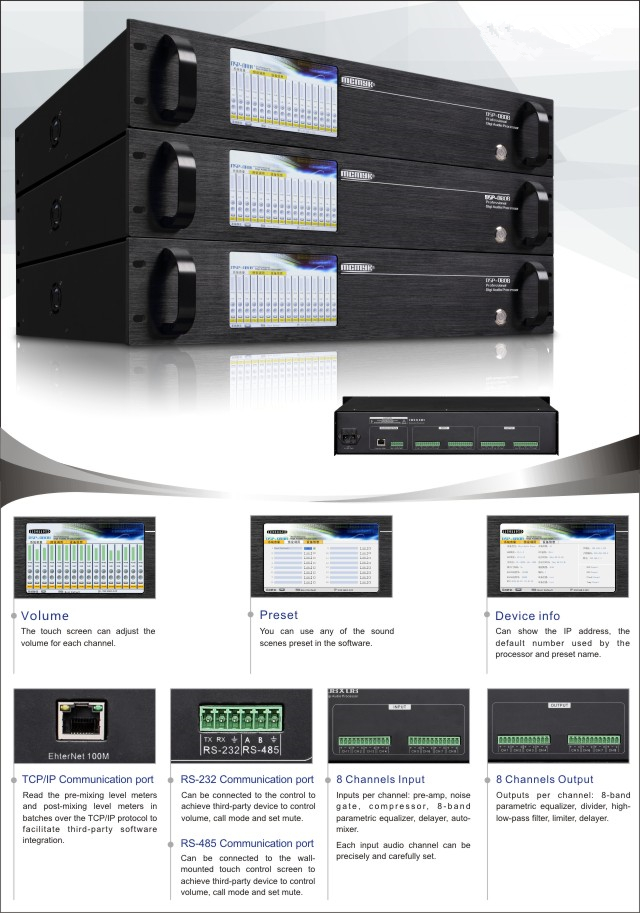

DSP features
The DSP series is a powerful digital audio processor that uses the fourth-generation ADSP-21489
floating-point audio DSP from ADI SHARC to provide the highest performance 400 MHz/2200 MFLOP
processor capability. Ultra-low noise floor preamplifier circuit, low distortion analog circuit, 114dB audio
AD, DA, provide high-quality sound quality for the site.The front panel of the device must show the
volume status, that can display all the input 8 and output 8 channel volume status; the LCD display
of the front panel can display the current IP address of the device, the current preset number used by
the processor, and the preset name. It is easy for administrators to quickly identify and differentiate the
current processor when there are multiple processors in the system. The front panel has a network
connection status indicator and an error alarm indicator. When a serious error occurs, a red alarm indication flashes.
Can connect with Android system, support smart phone or tablet PC control software package.
Powerful DSP processor capabilities
Based on the super powerful ADSP-21489 super powerful DSP processing capability and based on our
unique core DSP method, we have built-in independent 8-channel extremely low-distortion adaptive
feedback suppressor, 8-channel noise gate, 8-channel input limiter , 8-channel 8-band PEQ,
16-channel input 48dB slope high-pass low-pass filter, 8-channel 1 second delay, means that you can
make precise and careful settings for each input audio channel. 08x08 full matrix mixing,
free mixing of any input channel. Each of the 8 output channels has an independent 8-band PEQ,
compressor limiter, 48dB slope high-pass low pass, and 2 second delay.
Built-in sine wave, pink noise, white noise signal generator. 32 Presets can be stored.
DSP-0808 Digi Audio Processor matrix
Technical parameters
Nominal input level :+4 dBu line/-40 dBu mic level
Microphone preamplifier gain: 0-40 dBAnalog gain,20dBDigital gain
Maximum input level: +20dBu
Input impedance: >5 kΩ(balance),>3kΩ(Non equilibrium)
Common mode rejection ratio(CMRR): >70dB @ 1 kHz
Pre amplified equivalent input noise(EI N): <-125 dBu, 2 2Hz - 22kHz
Phantom Power: +48 V DC
Audio output: 8~20channels for balance line level, Phoenix plug
Nominal output level :0 dBu Line level
Output impedance:600 Ω(balance)
Frequency and processing ability(DSP): 400Mhz,400MIPS,2200 MFLOP
Sampling frequency / quantization: 48 kHz,24Bi t ADC,24Bi t DAC
frequency response: 20 Hz – 20 kHz, + /- 0. 5 dB
Dynamic range: 114 dB,ADC, DAC
Total harmonic distortion:<0. 01%;20Hz~20kHz@+4dBu
Inter channel crosstalk: >-80 dB @ 1 kHz,
Device sizeWxDxH: 2U,482 mm x 380mm x88mm
Power Supply: 100~240VA,50/60 Hz,75W
Work environment Maximum ambient operating temperature:40°C

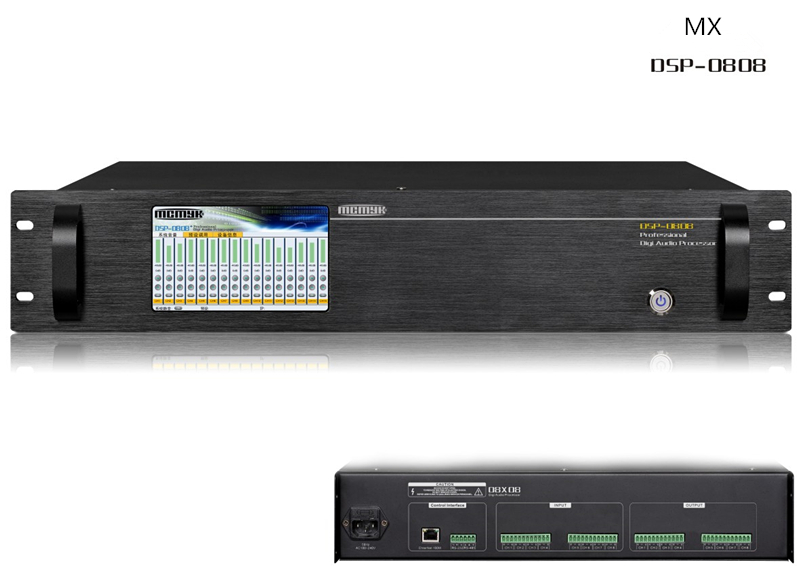

DSP-0808 Digital Audio Processor matrix dimensions
